Diesel Generator Sets-AG3-70

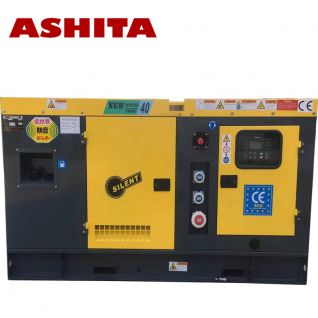

DIESEL GENERATOR SET
Genset Model	AG3-70
Prime Power (kva)	70	Standby Power(kva)	77
Voltage (v)	400/230V	Rated Speed (rpm)	1500
Frequency (Hz)	50	Rated Current (A)	102
Connection:	3 phase 4 wire	Power Factor:	0.8
Engine Model:	R4105ZD	Alternator Model:	AG-70

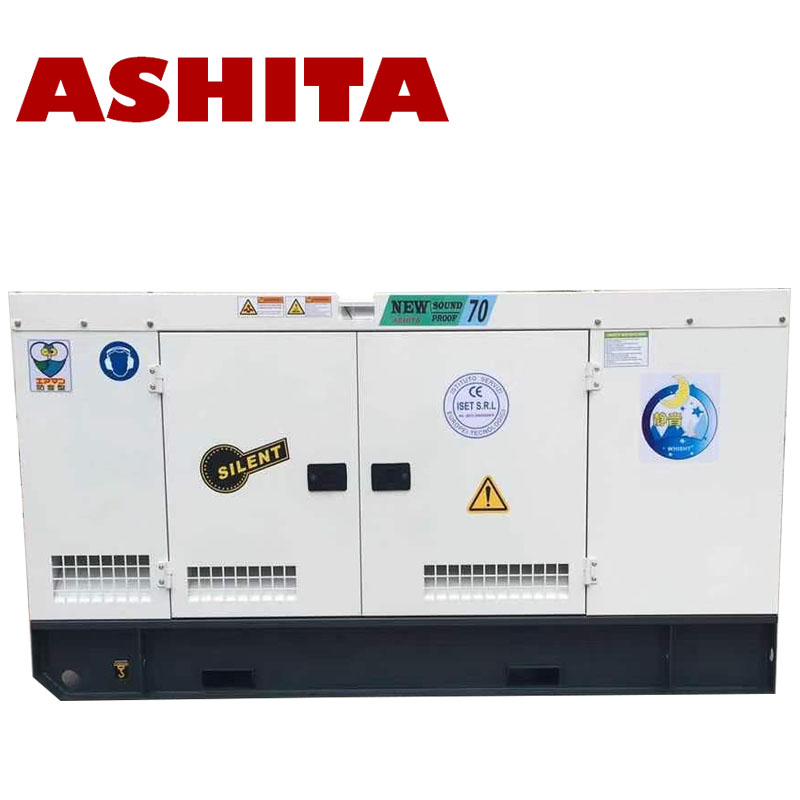

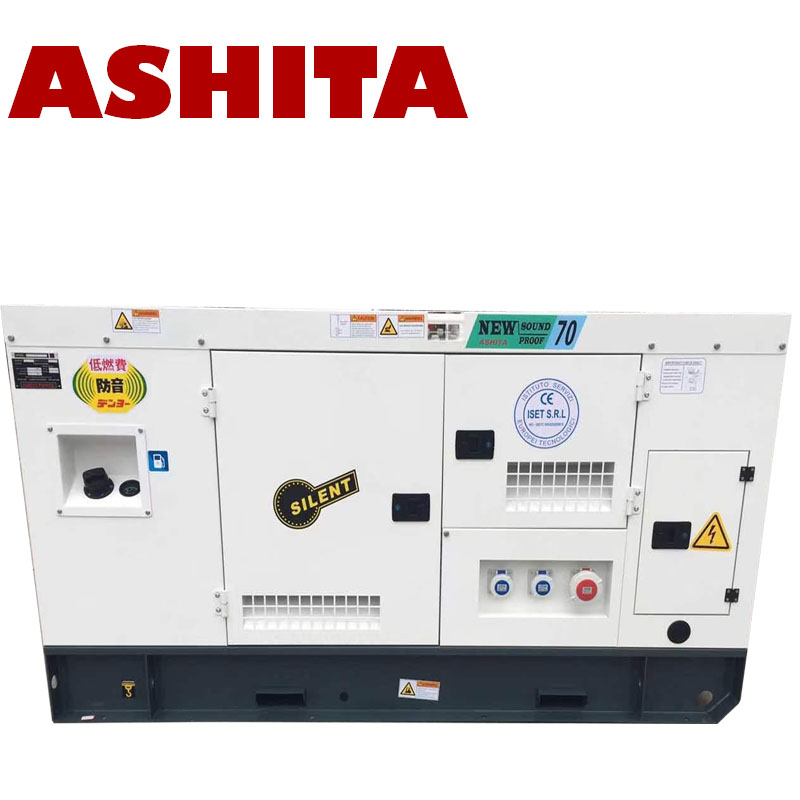

Net Weight (kgs)-Silent	968	Dimensions (mm)-Silent	2130*880*1200

Voltage Available: 50Hz: 380-400-415V/220-230-240V; 60Hz: 220-380-416-440-480V/110-208-220-240V

Any special voltage is also available as client’s request

Prime Power: comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power range. One hour 10% over load in every 12 running hours is allowed;

   Standby Power: standby power is the limit value of maximum output for emergency use. It is off-oil power, overloading is prohibited

Standard Configuration:

u Engine: R4105ZD

u Cooling Fan with fan guard and front guard

u Alternator: Single bearing, IP23, H class

u 24V Charger

u Shock Absorber

u Dry Air Filter. Dual Fuel Filter. Engine Oil Filter. Coolant Filter.

u MCCB Circuit Breaker

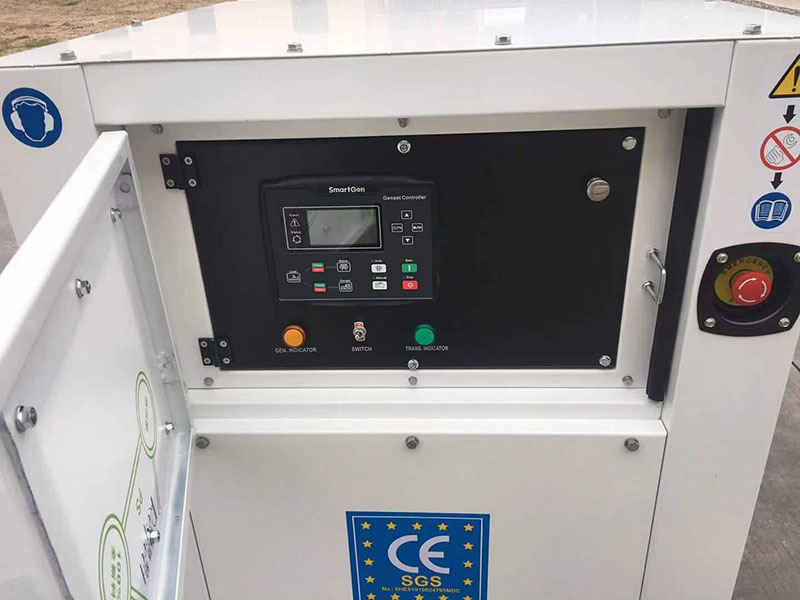

u Standard Control Panel; ATS for optional

u 2x12V Start Battery with connecting cable

u Storage Battery and battery line, Exhaust pipe, Corrugated pipe for anti-vibration, Cone Tube, Flange, Muffler

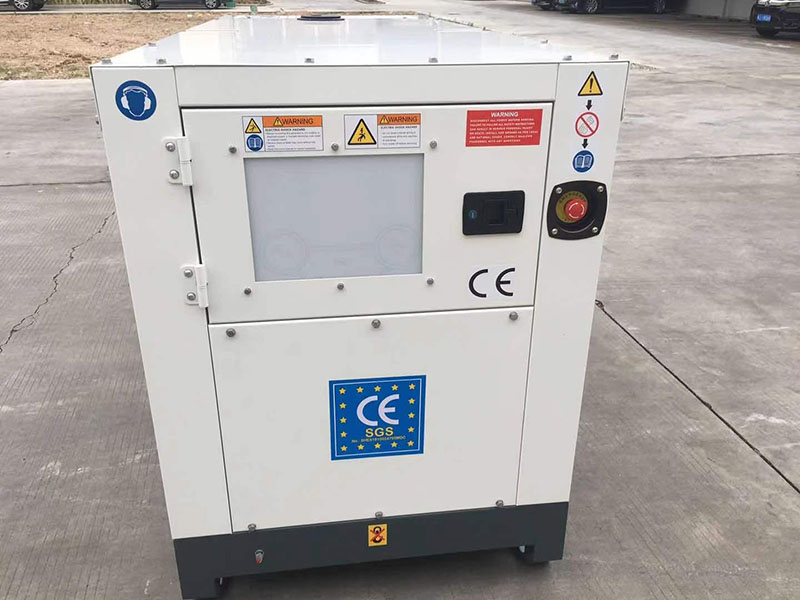

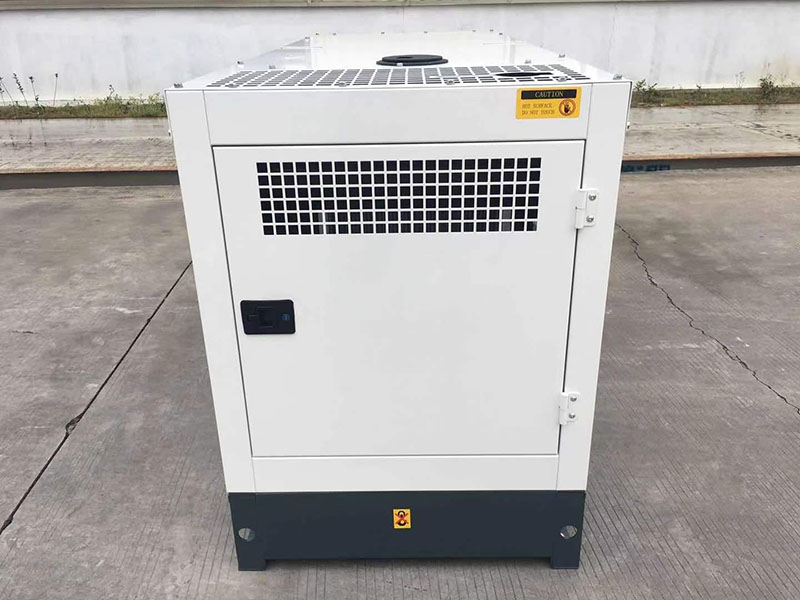

u Soundproof Enclosure/Canopy for optional

u Documents

Quality Assurance:

l Factory Inspection, the test items before delivery are mainly as follows:

ü Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload;

ü The noise level is tested

ü All of the meters on the control panel shall be tested

ü The appearance of the genset and all of the label and nameplate shall be checked

 l Warranty

12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; after the warranty period, we can supply the required spare parts for you under cost prices.

Engine Parameter:
Manufacturer/Model: Aspiration: Fuel System: Cylinder numbers Displacement: Bore x Stroke Compression Ratio: Max. Power: Governing System:	R4105ZD, 4 stroke Turbocharged, Inercooled A/AD Fuel Pump, 4 cylinders in line 4.33L 105 x 125 mm 17:1 61KW / 84HP Mech





Alternator Parameter: Basic Information

The alternators meet the standards of: RSO9001,CE

Technical Data:

Manufacturer:AG-70

Phases:3 phase 4 wire, Y type

Connection:1

Bearing numbers:0.8

Power Factor:IP23

Protection Class:≦1000M

Altitude Condition:Brushless, self-excitation

Excitation:H / H

Insulation class/Temp. rise class:﹤50

Tel. Influence Factor TIF:﹤2%

Tel. Harmonic Factor THF:≦±1%

Steady State Voltage Regulation:70KVA

Alternator Capacity:86.2%

Efficiency:0.15m³/s
