| MAIN SPECIFICATIONS OF GENSET | ||
| GENERATOR SET MODEL | AG3-125AI | |
| Unite Price (USD FOB FUZHOU) | ||
| Prime Output (KVA/KW) | 125KVA/100KW | |
| Standby Power(kVA/KW) | 137.5KVA/110KW | |

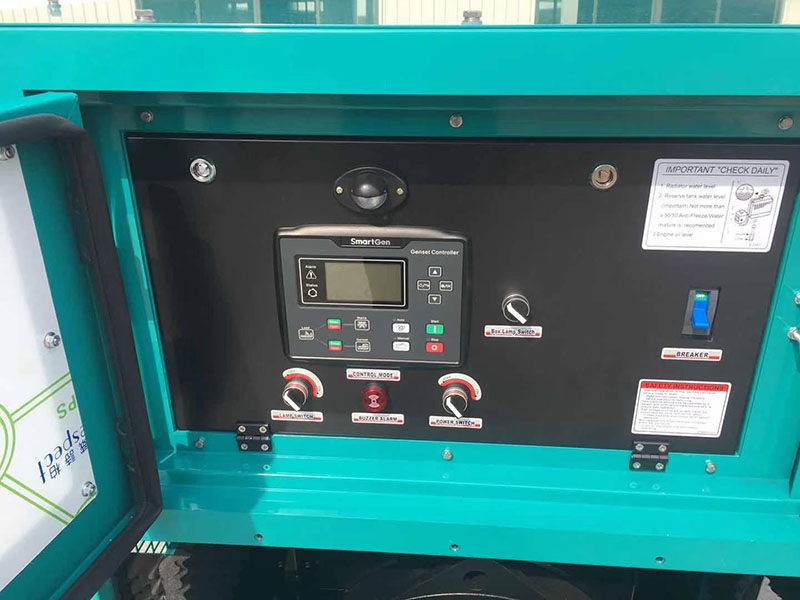

| PANEL | SMARTGEN 6120N | |
| TECHNICAL DATA OF DIESEL ENGINE | ||
| DIESEL ENGINE MODEL | 6BZ1-ZL1 | |
| Governor Type | MECH | |
| Engine Characters | Vertical, water-cooled, 4-cycle diesel engine | |
| Rated Output (KW) | 105KW (Max Power 110KW) | |
| Speed ( RPM / min) | 1500 | |
| Cylinder No. | 6 | |
| Firing Order | 1-5-3-6-2-4 | |
| Intake Type | TCI | |
| Bore*Stroke(mm) | 105*125 | |
| Compression Rated | 17.5:1 | |
| Fuel Consumption(g/kw.h) | 212 | |
| Exhaust Back pressure (KPa) | 266 | |
| Oil Pan Capacity(L) | 12 | |
| Emission | Stage Ⅱ | |
| Starter motor (V/KW) | 24/8.5 (Electric Start ) | |
| Governor | Electronic Governor ≤3% | |
| Flywheel NO. | SAE 3 | |
| Fly wheel Housing NO. | 11.5 | |
| Demision mm | 1210×810×960 | |
| Net weight(KG) | 520 KG | |
| TECHNICAL DATA OF ALTERNATOR | ||
| ALTERNATOR MODEL | YHG-100KW | |
| Continuous Output (KW) | 100KW | |
| Power Efficiency | 86.60% | |
| Voltage Regulation | ±1.5% with 4% engine govering | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| APPROXIMATE DIMENTION AND WEIGHT | ||
| L(mm) | 2780 | |
| W(mm) | 1150 | |
| H(mm) | 1200 | |
| G/W(kg) | 1500 | |
